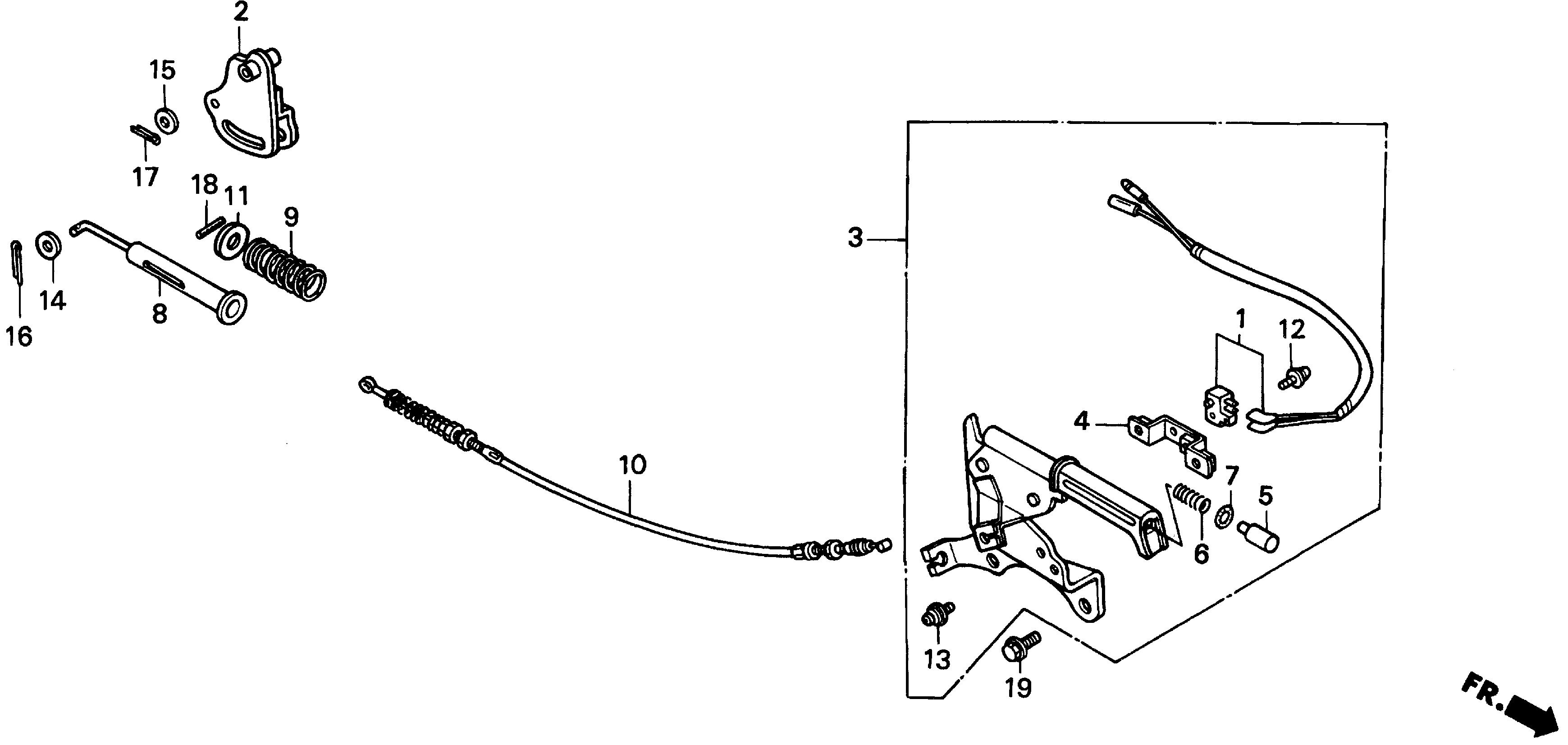

Description LEVER ASSY., PARKING BRAKE (NOT AVAILABLE)
Serial Range 1000001 - 5005582
Ref No 3
Part Number 47100-763-A02ZA
Description LEVER ASSY., PARKING BRAKE *YR161* (ORANGE)
Serial Range 5005583 - 9999999
Qty
Price $213.80
Ref No 4
Part Number 47132-763-A00
Description BRACKET, PARKING BRAKE SWITCH
Serial Range 6001516 - 9999999
Qty
Price $16.07
Ref No 5
Part Number 47142-763-A00ZA
Description KNOB, PUSH ROD *YR161* (ORANGE)
Serial Range 1000001 - 9999999
Qty
Price $11.84
Ref No 6
Part Number 47143-679-310
Description SPRING, PUSH ROD
Serial Range 1000001 - 9999999
Qty
Price $7.25
Ref No 7
Part Number 47147-567-000
Description O-RING, PARKING BRAKE LEVER
Serial Range 1000001 - 9999999
Qty
Price $7.59
Ref No 8
Part Number 47272-763-A00
Description PIPE, PARKING BRAKE SPRING SETTING
Serial Range 1000001 - 9999999
Qty
Price $45.62
Ref No 9
Part Number 47273-751-000
Description SPRING, PARKING BRAKE LOAD SETTING
Serial Range 1000001 - 9999999
Qty
Price $15.50
Ref No 10
Part Number 47290-763-A00
Description CABLE, PARKING BRAKE
Serial Range 1000001 - 9999999
Qty
Price $53.24
Ref No 11
Part Number 90527-751-700
Description WASHER, BRAKE SPRING SETTING
Serial Range 1000001 - 9999999
Qty
Price $8.88
Ref No 12
Part Number 93893-04014-08
Description SCREW-WASHER (4X14)
Serial Range 1000001 - 9999999
Qty
Price $1.90
Ref No 13
Part Number 93893-05012-08
Description SCREW-WASHER (5X12)
Serial Range 1000001 - 9999999
Qty
Price $2.30
Ref No 14
Part Number 94101-05800
Description WASHER, PLAIN (5MM)
Serial Range 1000001 - 9999999
Qty
Price $1.68
Ref No 15
Part Number 94102-10800
Description WASHER, PLAIN (10MM)
Serial Range 1000001 - 9999999
Qty
Price $5.91
Ref No 16
Part Number 94201-20150
Description PIN, SPLIT (2.0X15)
Serial Range 1000001 - 9999999
Qty
Price $1.76
Ref No 17
Part Number 94201-20350
Description PIN, SPLIT (2.0X35)
Serial Range 1000001 - 9999999
Qty
Price $1.76
Ref No 18
Part Number 94305-60251
Description PIN, SPRING (6X25)
Serial Range 1000001 - 9999999
Qty
Price $3.22
Ref No 19
Part Number 95701-08016-08
Description BOLT, FLANGE (8X16)
Serial Range 1000001 - 9999999
Qty
Price $3.08
